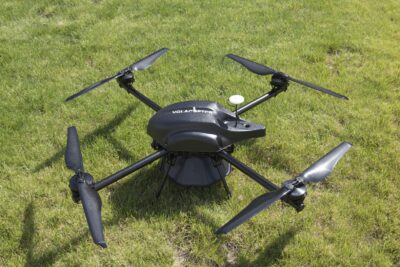

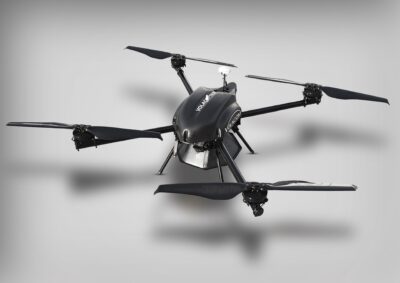

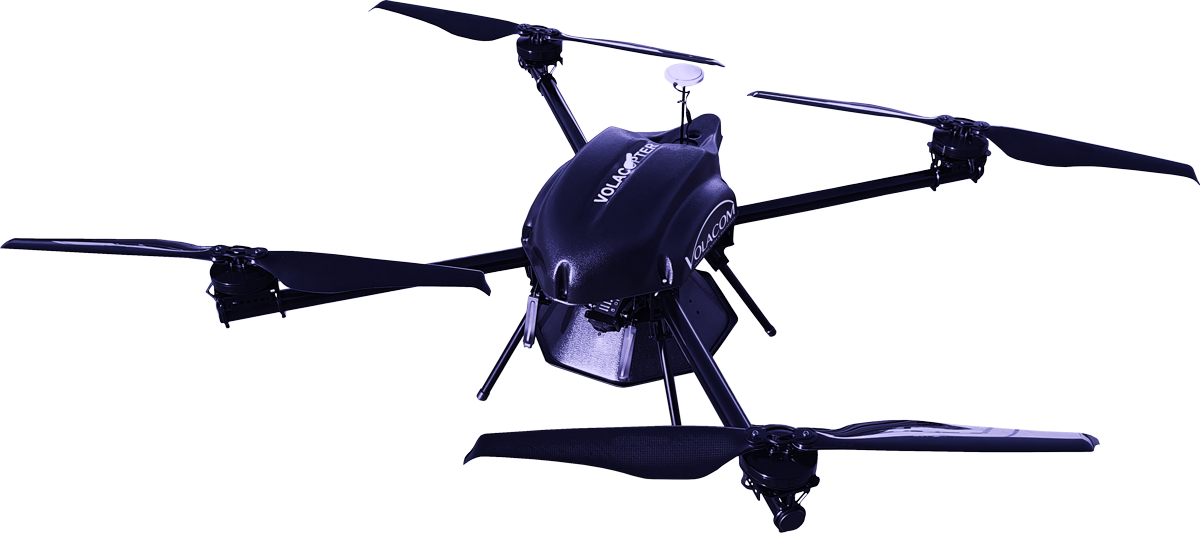

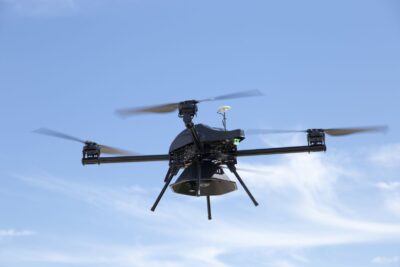

Volacopter LZ73-PRO UAV
Volacopter LZ73-PRO is a vertical take-off/landing UAV designed for professionals. Its main application is bird and wildlife control and deterrence for industries like agriculture, ports, heavy industry, industrial rooftops and solar farms. The UAV is equipped with a powerful acoustic module, emitting Volacom’s proprietary acoustic startle reflex-inducing signal and efficiently driving off birds and animals away from protected zones without allowing habituation to the emitted signal, nor causing stress to species.
- The platform is made of light materials like carbon and aluminum and achieves flight times of up to 50 min on a single charge.
- It is manually operated through the included remote control module or automatically through the built-in navigation software and mission programming capabilities.
- Two HD cameras for control, inspection, and surveillance are also included as а standard equipment.
Technical specification
| Aerial vehicle | |
| Diagonal size (propellers excluded) | 1 188 mm |
| Length (propellers excluded) | 881 mm |
| Height | 407 mm |
| Material | Aluminium, thermoplastic, carbon fiber composite |
| Motors | 4 pcs, brushless DC |
| Weight (battery and propellers included, no payload) | 7 200 g |
| Max payload | 10 kg |
| Endurance (no wind, no payload) | 45 min |
| Endurance (no wind, with acoustic module) | 35 min |
| Recommended flight time per charge | 30 min |
| Recommended altitude for bird deterrence | 15-20 m above birds |
| Cruising speed | 40 km/h |
| Maximum flight speed | 60 km/h |
| Max ascent speed | 5 m/s |
| Mas descent speed | 4 m/s |
| Satellite positioning system | GPS |
| Recommended flight speed during bird and animal deterrence | 12 km/h |
| Control mode | Manual, auto “mission” mode |
| Nr of propeller sets included in package | 2 sets x 4 propellers each |
| Operating temperature | -5°C to +40°C |
| Operating humidity | max 90% |
| Ingress protection | IP53 |
| Max wind resistance | <10 m/s |
| Horizontal camera | |
| Sensor | 1/2.33” CMOS 16.37 MP |
| Lens | F2.5 DFOV166° |
| Focal length | 3 +/- 5%mm |
| Video resolution | Max support 1080P 60fps |
| Photo format | JPEG |
| Video format | H.264 High Profile Level 4.2 MP4 |
| Video output | HDMI: Support 1920x1080P60 output with CEC |
| Vertical camera | |
| Sensor | 1/2.33” CMOS 16.37 MP |
| Lens | F2.0 DFOV166° |
| Focal length | 3 +/- 5%mm |
| Video resolution | Max support 1080P 60fps |
| Photo format | JPEG |
| Video format | H.264 High Profile Level 4.2 MP4 |
| Video output | HDMI: Support 1920x1080P60 output with CEC |
| Battery | |
| Nr of batteries included in package | 2 |
| Type | Tattu 16000 mAh, 22.2V |
| Voltage | 22.2V |
| Weight | 2 063 gr |
| Dimensions | L/W/H 202/88/70 mm |
| Max continuos / burst discharge | 15C / 30C |
| Discharge plug | AS150+XT150 |
| Charging hub type | SKYRC PC1080 |
| Acoustic module | |
| Sound pressure | 130 dB @ 1m |
| Operating and storage temperature | -40C to +55C |
| Emitter type | Compression drivers |
| Remote control | |
| Type | DJI Lightbridge 2 |
| Screen | Apple iPad 9.7′ |
| Operating frequency | 2.4 GHz and 5.8 GHz |
| Output power | 9W |
| Built-in battery | 6000 mAh, 2S LiPro |
| Operating temperature | -10C to +40C |
| Max transmission range | 3500 m (Unobstructed, free of interference) |
| Charger voltage | 17.4V |
| Charger rated power | 57W |
| Transport case | |
| Dimensions | L/W/H 940/940/500 mm |
| Weight (fully equipped UAV + acoustic module. Excluding remote control briefcase) | 44 kg |
| Material | Plywood |
| Remote control briefcase specification (separate, incl. remote control) | Dimensions: L/W/H 480/400/220 mm; Weight :6.6 kg |
