BCAS Wind
The Bird Collision Avoidance System for wind farms is a fully automated detection and deterrence solution for on- and off-shore wind turbine generators. With detection distance of up to 1000 meters and targeted deterrence capabilities at 400 meters, it minimizes WTG stoppages providing uninterrupted operation and green power generation. The system operates without the need for human operator, 24/7 in all weather conditions.
The BCAS Wind Technology
Detection
Panoramic Thermal Imaging Camera

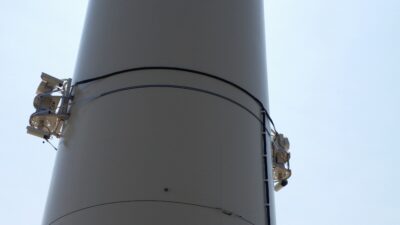

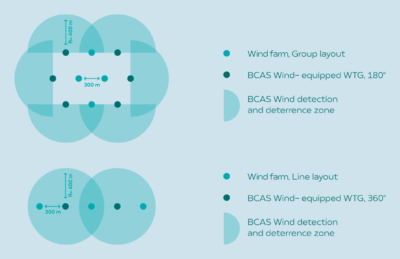

- Two BCAS Wind units on each wind turbine tower provide 360° coverage
- Up to 1000 m detection
- Detection, recognition, and tracking of birds in all weather conditions, even in zero-visibility
- Multiple bird detections
Deterrence
Acoustic Module
- Designed to evoke ASR (Acoustic Startle Reflex)
- Powerful acoustic emitter – 145 dB @ 1 m
- Effective deterrence at 400 m
- Unique sound wave – no habituation, no harassment ● Minimal noise disturbance – only upon detection
- Sound wave focused at targeted birds
Data
Monitoring and Control Center
- Modular web-based application
- Video record of every detection
- Remote control of all functions
- Quick storage and data retrieval
- Statistical database with detection logs
- Graphical display of data analyses
- WTGC modules for generator shutdown if needed
Why BCAS Wind?
Оver 150 systems on 4 continents
Custom made design offering a variety of options for post-installation optimization and fine-tuning
Fully automatic solution with outstanding efficiency through a combination of bird control techniques
Operational 24/7 in all-weather conditions
No habituation – scientifically proven and field-tested for all types of birds
Highest build quality, low maintenance costs and 15+ years lifetime expectancy
State of the art technology and innovation, 100% quality control
Harmless to wildlife
Sensitization effect on birds towards protected areas
BCAS Wind vs Alternatives
| BCAS Wind | Acoustic repellent | Day camera-based acoustic system | Radar system | Thermal imaging camera system | |
| Daytime detection | YES | no | YES | YES | YES |
| Nighttime detection | YES | no | no | YES | YES |
| Low/Zero visibility detection | YES | no | no | YES | YES |
| Long distance (400+ m) detection | YES | no | no | YES | YES |
| Long distance (400+ m) deterrence | YES | no | no | no | no |
| Fully automated | YES | YES | YES | YES | YES |
| Deterrence capability | YES | YES | no | no | no |
| Targeted sound wave | YES | no | no | no | no |
| ASR induction | YES | no | no | no | no |
| No habituation | YES | no | no | YES | YES |
| Tracking | YES | no | YES | YES | YES |
| Video records | YES | no | YES | no | YES |
| Start/stop control module | YES | no | YES | YES | YES |
| No harm to wildlife / no stress induction | YES | no | no | YES | YES |
| Statistical/Historical data records | YES | no | YES | YES | YES |
Technical specification
| Camera specification | |
| Detector type | Uncooled LWIR Thermal Imager |
| Resolution | 640px x 4096px |
| Pixel size | 17 µm |
| Spectral band | 7.5 – 13.5 µm |
| Performance | <50 mK @ f/1.0 |
| Focal length | 19/25/35/50 mm |
| Vertical field of view (VFOV) | 26°/20°/14°/9.9° |
| Horizontal field of view (HFOV) | 32°/25°/18°/12.4° |
| Spatial field of view (IFOV) | 20° x 205° |
| Bird detection range (100cm wingspan) | max. 1300m @ 50mm focal length |
| Maximum horizontal angle of rotation | 180° |
| Scanning rate – 180° | 12s @ 25mm focal length |
| Minimum scanning angle (horizontal) | 1° |
| Power supply | 24VDC / 2A |
| Acoustic specifications | |
| Sensitivity 2x1W/1m | 123 dB |
| Sound Pressure Level (Peak) | 145 dB |
| Beam width | ± 15° @ 2kHz/-3dB |
| Deterrence signal | Proprietary for evoking ASR |
| Max power | 600W |
| Nominal impedance | 2×4 ohm |
| Power supply | 24VDC / 2A |
| Control module specification | |
| Dimensions | H/W/D 900/700/500 mm |
| Weight | 64 kg |
| Power supply | 85-264 VАC / 50-60Hz / 5.9A |
| Connection and communication specification | |
| Communication interface | Ethernet |
| Ethernet type | 10/100 Mbps, RJ-45 |
| Protocols | TCP/IP, HTTPS, FTP, SNMP |
| Ethernet standard | IEEE 802.3 |
| User interface | Web-based UI |
| Environmental conditions | |
| Operating temperature | -20°C ÷ +55°C |
| Storage temperature | -20°C ÷ +60°C |
| Operating relative humidity | 100% |
| Ingress protection Camera / Acoustic / Control modules | IP65 / IP54 / IP54 |
| Physical specification | |
| Overall dimensions (excl. Control module) | H/W/D 1219/798/625 mm |
| Weight Camera / Acoustic module (excl. mounting frame) | 14 / 15 kg |
| Build material (modules) | AL5754-H111, AL6082-T6, anodized |
| Build material (mounting frame and bands) | AISI 304 |
